제품 상세 정보:
결제 및 배송 조건:
|
| 와이어: | 에나멜을 입힌 철사 | 비율을 돕니다: | 1:1 |
|---|---|---|---|
| 핵심: | 무정형인 / 페라이트 코어 | 빈도를 시험하십시오: | 10KHz |
| 타입: | EMI 필터 | 작동 온도: | -40ºC에 +125ºC |
| 하이 라이트: | 환상면 페라이트 코어 인덕터,이엠아이 필터 페라이트 코어 인덕터,에나멜 선 페라이트 코어 인덕터 |
||

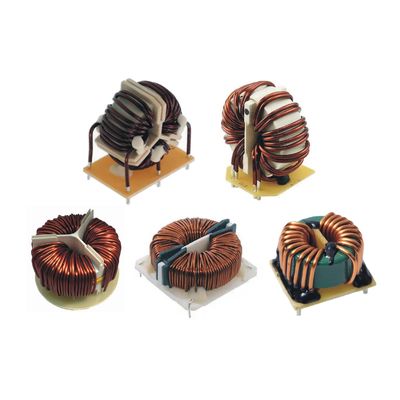

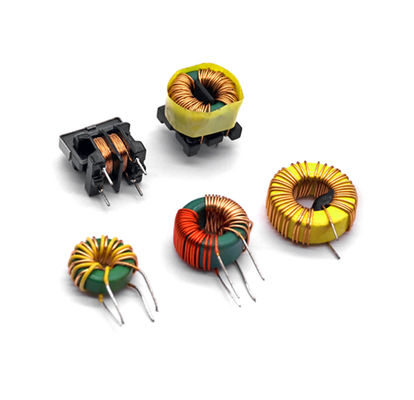

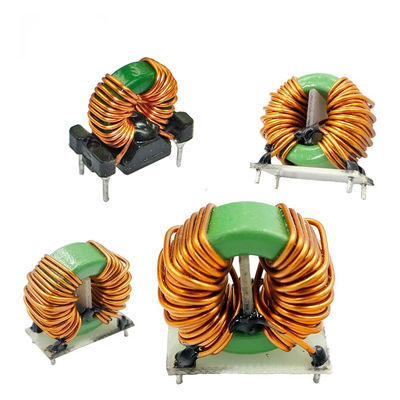

Ferrite core inductor toroidal common mode choke coil toroidal inductor for switch power supply
Common mode Choke, also known as Common mode Choke, is commonly used to filter Common mode EMI signals in switching power supplies of computers.In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.
| Components | Ferrite core, Copper wire;Basing;Shielding case |
| Core | NiZn/Iron /MnZn/MPP/Amorphous magnetic |
| Wire | Enameled copper wire-UEW/PEW |
| Functions | Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc |
| Mounting type | Surface mount ;Through hole ; Wire lead |
| Shape Types | Vertical;Horizontal;with/without base;shielded/unshielded ;SMD |
| Coil Structure | Toroidal |
| Working Frequency Range | 1KHZ-100MHZ |
| Inductance Range | 1uH-1H |
| DCR Range | unknown-Depend on customers' request |
| Storage Temperature | -20℃ to +85℃ |
| Working Temperature | -20℃ to +125℃ |
| Storage Humidity | 30% to 95% |
| Test Items | Ø Turns Ratio Ø Inductance Ø DC resistance test Ø Safety test Ø Current test Ø Hi-POT |
| Certifications | ISO9001:2008, ISO14001:2008, UL, CQC |
| Sample Time | 3-5 working days |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Feature | Low DCR common mode High current High power High efficiency Low temperature rise Stable performance |
| Applications | 1. VCRS, Copy machine , Audio equipment , Game machines 2. TV sets, Microcomputer equipment, printers, Terminals 3. Communications control equipment 4. Switching power supply, chargers, alarm system 5. UPS, VCD/DVD players, audio and visual equipment 6. OA machines, inverters, chargers, alarm system |
Notes: Customized is available
