풍모

제품 사양

분리 전압: 1500V 분

힘: 1W

작동 온도: -40' Ｃ ~ +105' Ｃ

정전기 방지 보호: 최대 8KV

입력 전압: 3VDC,5VDC,12VDC,15VDC,24VDC

출력 전압: 3VDC,5VDC,9VDC,12VDC,15VDC,24VDC

설치: smt

강조하다:

Type B & A+6mA/DC Protection Residual Current Sensor

High-Precision Split Core Current Transformer

Fluxgate Technology Current Sensor

기본 정보

원래 장소: 중국

브랜드 이름: SHINHOM

인증: RoHS

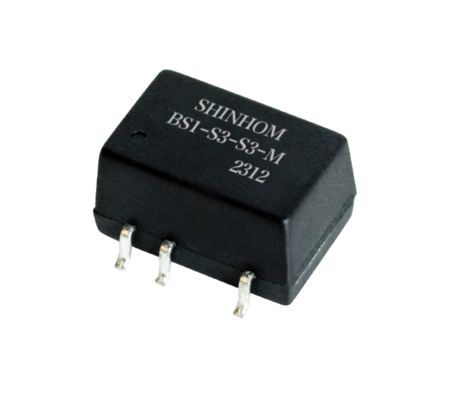

모델 번호: bs1

문서: BS1 DC-DC Converter_.pdf

결제 및 배송 조건

배달 시간: 2 ~ 8 주

지불 조건: l/c, t/t

갤러리

High-Precision Residual Current Sensor with Fluxgate Technology and Type B & A+6mA/DC Protection for EV Charging

제품 설명

ES201 Series High-Precision Residual Current Sensor for EV Charging Protection

As a critical safety component in global electric vehicle charging infrastructure, the ES201 series residual current sensors utilize advanced fluxgate technology to achieve exceptional detection of complex fault currents. This precision current sensor reliably identifies AC currents, pulsating DC currents, steady DC currents, and high-frequency residual currents. It integrates self-diagnostic functions and logic evaluation circuits within a compact, modular design. Compliant with the most stringent international protection standards, including Class B and A+6mA/DC, it is the preferred choice for EV charging residual current monitors, enhancing safety and compliance in Mode 2 and Mode 3 charging applications.

Features:

Universal Compliance: Meets Type B & A+6mA/DC standards, ensuring compatibility with new Chinese GB, European, and North American safety requirements (IEC62955, GB/T18487, UL2231-2).
Fluxgate Technology: Provides high-accuracy detection of all residual current waveforms, surpassing conventional solutions.
Integrated Self-Check: Automatic self-diagnosis function enhances system reliability and operational safety.
Digital Output: Simple high-low level signal output for seamless integration with system MCUs.
Compact & Flexible Design: Small form factor with multiple installation options: PCB mount (perforated/pre-embedded) and connector types for design versatility.
Robust Construction: Rated for an extended operating temperature range from -40°C to +85°C, suitable for demanding environments.

Performance Index

Parameter	Specification
Protect Type	Type B or A+6mA/DC
Power Supply Voltage	+5 VDC
Output Mode	High-Low Levels
Operating Temperature	-40°C ~ +85°C
Maximum Current	User-Selected or Model-Specific (e.g., 32A, 42A, 80A)
Application Power Range	Covers systems from 3.5kW, 7kW, 11kW, up to 22kW
Key Standards	IEC62955, IEC62752, IEC62423, IEC61851, GB/T22794, GB/T18487, GB/T41589, UL2231-2

Applications

This versatile electrical sensor is engineered specifically for the electric mobility ecosystem, serving as a core safety component in AC charging systems worldwide.

Portable EV Chargers (IC-CPD): Provides essential residual current protection in Mode 2 charging cables.
AC Charging Piles & Wallboxes: The ideal residual current sensor for Mode 3 charging stations in residential, commercial, and public settings.
Electric Vehicle Supply Equipment (EVSE): Ensures operational safety and standard compliance for all AC charging infrastructure.
Smart Energy Systems: Offers critical fault detection in applications where charging points integrate with renewable energy and grid management.
