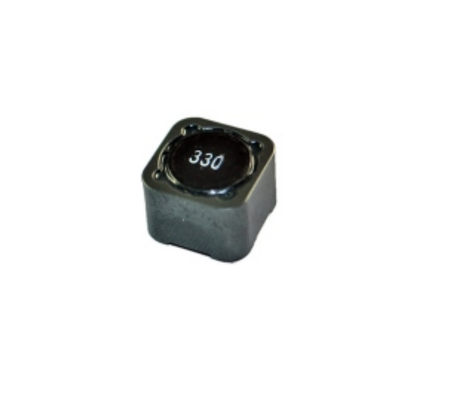

High Reliability Shielded SMD Power Inductor for DC-DC Power Conversion
The SDRH1514B Series is a Shielded SMD Power Inductor designed for high-efficiency power management circuits. Featuring a compact surface-mount structure and a fully shielded core, this Power Inductor effectively reduces magnetic interference while maintaining stable inductance under load. With its low profile and robust construction, the series is well suited for modern DC-DC converters and switching power supplies requiring high current handling and low power loss.
Engineered as a Low DCR Power Inductor, the SDRH1514B series minimizes copper loss and improves overall conversion efficiency, making it an ideal choice for space-constrained and thermally sensitive designs. As a reliable SMD Inductor, it supports automated assembly processes and consistent performance in high-volume production.
Key Features
Shielded SMD Structure
Fully shielded design helps suppress EMI and improves system stability in dense PCB layouts.
Low DCR Design
Optimized winding structure reduces DC resistance, supporting higher efficiency and lower temperature rise.
High Current Capability
Designed for power circuits where stable inductance is required under continuous current conditions.
Compact Surface-Mount Package
SDRH1514B package size supports high-density PCB designs and automated reflow soldering.
Reliable Thermal Performance
Suitable for continuous operation in demanding power applications.
RoHS Compliant
Manufactured in compliance with RoHS requirements for global markets.
Electrical Characteristics
All parameters are model-dependent. Please refer to the SDRH1514B datasheet for detailed specifications.
Inductance range: per datasheet
Rated current: per datasheet
DC resistance (DCR): low-resistance design, per datasheet
Operating temperature range: per datasheet
Package type: SMD, shielded construction
Applications
DC-DC Converters: Buck, boost, and step-down power circuits
Switching Power Supplies: Industrial and consumer power modules
Power Management Systems: Voltage regulation and current smoothing
Consumer Electronics: Networking devices, set-top boxes, and embedded systems
Industrial Electronics: Control boards and power distribution circuits
The SDRH1514B Series Shielded SMD Power Inductor combines compact size, low DCR performance, and reliable shielding to meet the demands of modern power electronics. As a high-quality Power Inductor for DC-DC power conversion, it provides designers and buyers with a dependable solution for efficiency-driven and space-limited applications.
