HFD2101-2 Integrated GNSS Anti-Jamming Receiver with Dual-System GPS-L1 + BDS-B1 Support, Low Power Consumption ≤10 W, and Compact Lightweight <500 g Design

100
MOQ
HFD2101-2 Integrated GNSS Anti-Jamming Receiver with Dual-System GPS-L1 + BDS-B1 Support, Low Power Consumption ≤10 W, and Compact Lightweight <500 g Design
풍모 갤러리 제품 설명 지금 얘기해
풍모
제품 사양
강조하다:

Dual-system GNSS Anti-Jamming Receiver

,

Low power consumption GNSS Receiver

,

Compact lightweight GNSS Receiver
기본 정보
원래 장소: 중국
브랜드 이름: SHINHOM
인증: RoHS
모델 번호: HFD2101-2
문서: HFD2101-2_.pdf
결제 및 배송 조건
배달 시간: 2~8주
지불 조건: 신용장, 티/티
제품 설명

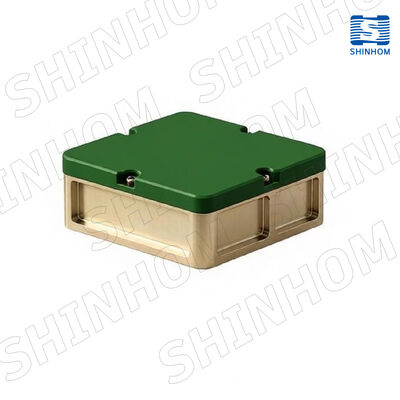

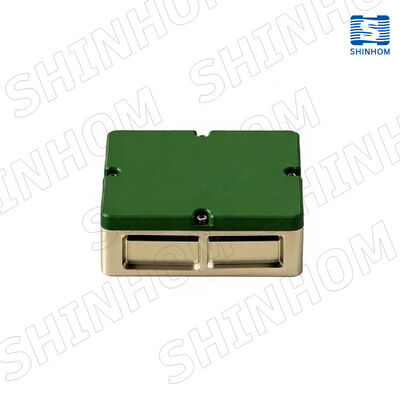

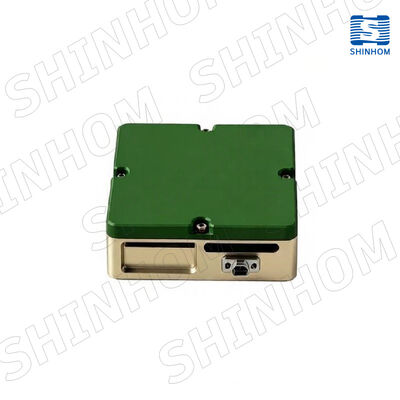

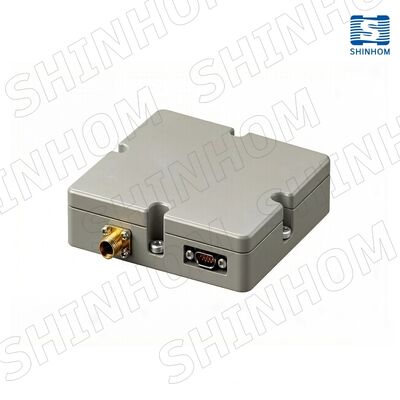

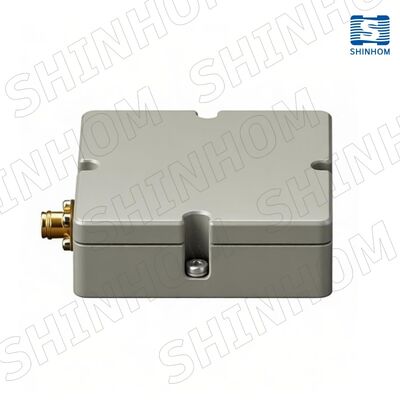

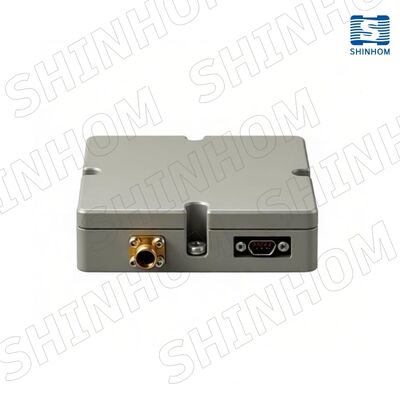

HFD2101-2 Integrated GNSS Anti-Jamming Receiver
The HFD2101-2 Integrated Anti-Jamming Receiver provides stable satellite navigation in challenging electromagnetic environments. Supporting GPS-L1 and BDS-B1 signals, it effectively suppresses broadband, narrowband, pulse, and frequency-sweeping interference. With compact design, low power consumption, and high reliability, it's ideal for UAVs, autonomous ground vehicles, unmanned surface vessels, and other platforms requiring accurate GNSS positioning under interference conditions.
Key Features
  • Advanced GNSS anti-jamming capability for reliable navigation
  • Dual-system support: GPS-L1 + BDS-B1 for improved accuracy
  • Low power consumption (≤10 W)
  • Compact and lightweight (<500 g) for easy integration
  • High reliability in harsh environments (-40°C ~ +75°C)
  • Standard communication interface for seamless integration
Applications
  • UAV navigation systems
  • Autonomous ground vehicles
  • Unmanned surface vessels
  • Military and electronic countermeasure environments
  • Intelligent transportation systems
  • Robotics and autonomous platforms
Technical Specifications
Receiving Frequency GPS-L1, BDS-B1I/B1C
Positioning Accuracy Horizontal 5 m (1σ), Vertical 10 m (1σ)
Speed Accuracy 0.2 m/s (1σ)
Position Update Rate 10 Hz
Anti-Jamming Capability Single ≥100 dB, Triple ≥90 dB
Input Voltage 9 – 36 V DC
Power Consumption ≤ 10 W
Weight ≤ 500 g
Operating Temperature -40°C ~ +75°C
Storage Temperature -55°C ~ +85°C
Why Choose HFD2101-2
Strong GNSS anti-interference capability, dual satellite system support (GPS + BDS), compact and lightweight integrated design, reliable performance in harsh conditions, and ideal for UAV and autonomous navigation applications.
Contact for More Information
태그:

Dual-system GNSS Anti-Jamming Receiver

Low power consumption GNSS Receiver

Compact lightweight GNSS Receiver
