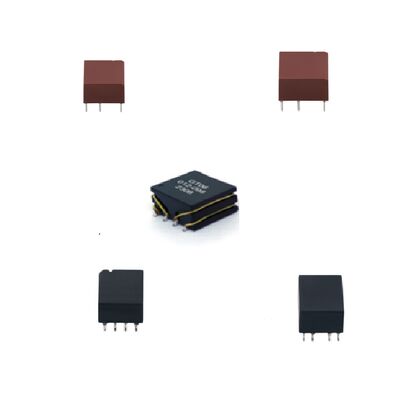

| Turns Ratio Options | Multiple configurations from 1:1 to 8:3 (e.g., 1:1, 1:2, 2:1, 3:4, 3:5, 3:8, 4:3, 8:3, 8:9, 1:1.7) |
| Inductance (Pin 1-3) | 538µH or 680µH (±35%) measured at 100kHz, 100mVrms |
| Leakage Inductance | 0.6µH to 2.0µH max (primary with secondary shorted) |
| Capacitance (Primary to Secondary) | 15pF to 30pF max |
| DC Resistance (Primary 1-3) | 750mΩ to 1500mΩ max |
| DC Resistance (Secondary 6-4) | 750mΩ to 1500mΩ max |
| Isolation Voltage | 4KVrms (550Vrms continuous operation) |
| Creepage & Clearance Distance | ≥ 8mm between primary and secondary windings |
| Operating & Storage Temperature | -40℃ to +125℃ |
| Certification & Compliance | AEC-Q200 qualified, IEC62368-1 reinforced insulation |
| MSL Rating | Level 1, floor life 0.5 year under ≤30°C / 60% RH |
| Soldering Profile | Recommended wave soldering profile included with preheat, ramp-up, peak temperature (250°C±3°C), and ramp-down guidelines |
